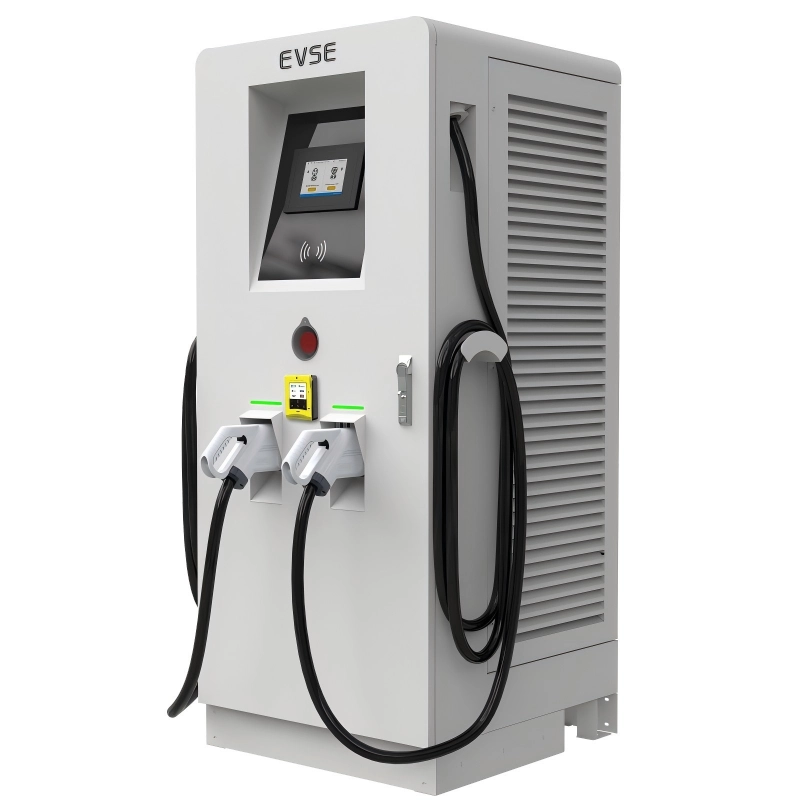

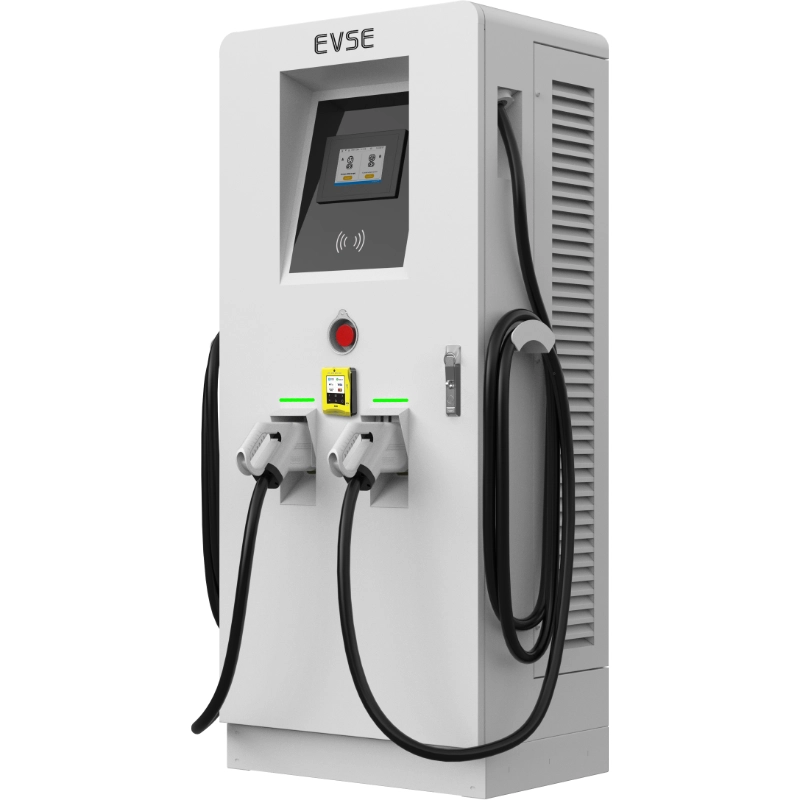

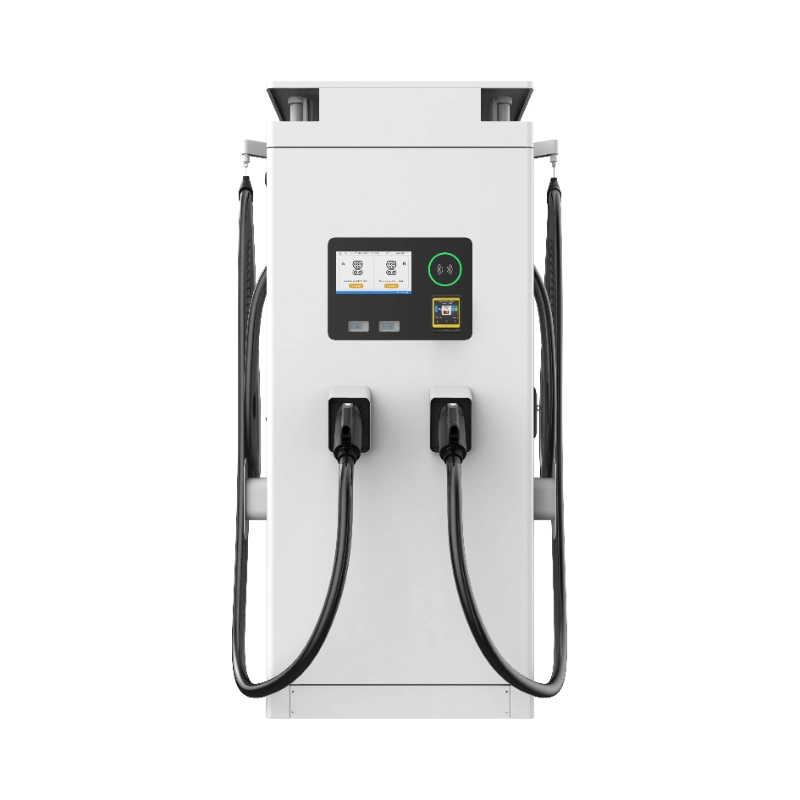

DC Fast Charging Station

Power:
120KW/160KW/180KW/240KW
Flexible Option：
App operation or RFID authentication or plug and play
High protection grade as IP54, with IP65 optional
Optional POS terminal for contactless credit card payment
Secure and Safe：
Type A RCD for residual current protection
PTB certified energy meter with accurate measurement
DIN 70121 prepared for advanced feature of Plug and Charge
High Efficiency：
One charger with two outputs, simultaneously charging
Two CCS2/CCS1/NACS/GB/T DC connectors, with output up to 240KW Constant power from 150‑1000V voltage, less heat with smaller current
Intelligent Control：
Ethernet/4G/ WIFI communication all supported OCPP1.6 communication protocol with CMS
Intelligent operation by App and cashless payment

Model	YL20K‑H1	YL30K‑H2
Technical features
Max Power	Up to 20KW	Up to 30KW
Input/output power	400VAC±10%‑50/60Hz‑3phase	400VAC±10%‑50/60Hz‑3phase
Power factor	0.98
Efficiency	>95%
Measuring accuracy	1%
output Voltage range	CCS: 150‑1000VDC
output current range	0‑65A	0‑100A
Communication	Ethernet / WIFI / OCPP 1.6 Json / 4G (optional)
User interface	RFID card and APP
Display	LCD 5inch Touch Screen
Versatility	EN/ IEC 61851‑1: 2019, EN/ IEC 61851‑23: 2014
Load balancing	Load balancing meter and CT(optional)
Security design	over/under Voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection.
DC Plugs	CCS2*1 Cable 5M
Physical properties
Application place	Indoor / outdoor
Installation method	Wall mount, pedestal mount (optional)
IP Level	IP55
Sound noise	<55DB in all directions
operating temperature	-30℃ to +50℃
Humidity	Max 95%(non‑regulating)
Product Dimensions	600300194(LWH) mm	600300194(LWH) mm
Package Dimension	750430364(LWH) mm	750430364(LWH) mm
Net Weight	35.5Kg	35.5Kg
Gross Weight	37.7Kg	37.7Kg
